All of our Pergolas come with full assembly instructions and can be easily self fitted with basic DIY knowledge, as well as ideally two more people to help, plus an array of tools.

Estimated build time varies for each size model and ranges from 1-5 hours.
We always recommend anchoring the Pergola to the ground and ensuring you have something substantial enough to anchor into before the build begins. Please be aware that your warranty will not cover you for damage caused to a Pergola that has not been adequately secured to the ground.

If you would rather not assemble your Pergola yourself, then please tick the box above to add the install to your order. Please click here for more information regarding the installation and the pre-installation guide agreement.

A natural fall of ideally 10mm is required to allow the water to drain away as designed and for the screens to be fitted correctly, which by building regulations, your patio likely already has. Our install team can use packers under specific legs to ensure the complete gazebo works correctly should the fall of the patio level be different to the above, and by using our installation service you are agreeing to our team using packers under the footplates in such instances.

You can find assembly instructions for the 3.6 x 3 model here.

You can find assembly instructions for the 3.6 x 4m model here.

You can find assembly instructions for the 3m extension here and 4m extension here

You can also download the floor plans:

3.6 x 3m floor plan here

3.6 x 4m floor plan here

3.6 x 6m floor plan here

3.6 x 7m floor plan here

3.6 x 8m floor plan here

3.6 x 9m floor plan here

Before you complete groundworks or book a pergola installation, please see our foundational guidance below to support you in discussions with your landscaper or builder.

The pergola must be fitted on to a solid surface and beneath the finished surface must be something for the pergola to be secured safely such as a concrete pad.

This would need to be completed before our installers arrive as they do not offer any groundworks, a local tradesperson would be able to assist you.

We can provide a floorplan indicating where the floor plates of the pergola will sit based on your chosen size and orientation, the floorpan can also be viewed on the relevant product page on our website.

We advise for concrete pads of approx 40x40x40cm beneath any tiles, if you have decking then we advise the same or alternatively extra structural joists below the decking.

You should then finish your surface completely with the tiles or decking on top, so that when our installers arrive they can drill through the tile/deck and into something extra secure below.

It is a good idea to choose your pergola size before doing any groundworks however if you have already laid the patio/deck then we do advise for you to check what is beneath the surface. Is it secure enough? Type1 or sand would not be suitable. Composite decking without something solid below would not be secure enough, unless you already have structural beams underneath where the footplates will sit. If this is the case, installing would successful as long as all footplates are sitting on structural beams wide enough for the footplate to be bolted into fully.

Should you have any questions before completing groundworks or booking a pergola installation please speak to our team on 02891479577.

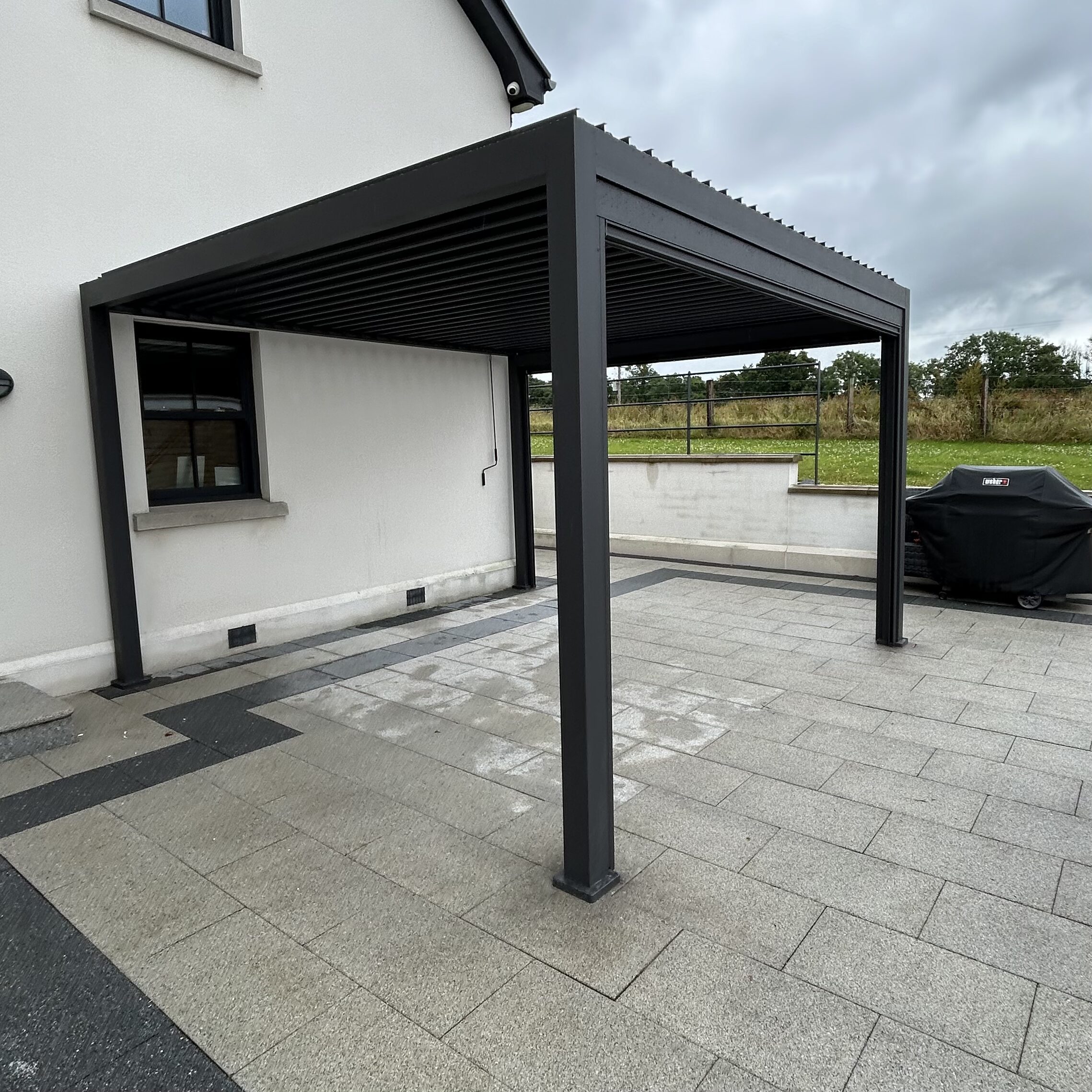

The Alvaro pergola is our latest addition to the range, this model is an adaption of the Rota and is available as a 3.6x3m and 3.6x4m base model with available extension kits at 3m and 4m with sleek single legs at the connection points. It is infinitely extendable lengthways in metres from 3.6x3m (excluding 3.6x5m) making it perfect for garden projects needing flexibility, easily adaptable shade and shelter.

Can I Build the Pergola Myself?

All models come with instructions and can be self-fitted with basic DIY knowledge, as well as ideally two more people to help, plus an array of tools. Estimated build time varies for each size model and can range from 1-5 hours. This does not affect the 5-year manufacturers’ warranty on the frame or the 2 year warranty on the sun & weather screens.

Do the Pergolas have a warranty?

All of our aluminium products have a 5-year manufacturer’s warranty as standard. The sun and weather screens have a 2-year warranty.

Is the Pergola Roof Weatherproof?

When the louvres are fully closed, the roof is completely weatherproof in standard conditions. Rainwater runs from the roof louvres, into the guttering and then drains down internally, through the legs. During extreme weather conditions and severely heavy rain, there may be a slight leakage as excessive water cannot flow through the drainage quick enough and can spill over, just like guttering on a home or an external drain.

Are the Pergolas wind & storm resistant?

Our models are semi-permanent structures, meaning they a secured to the surface and not below, this makes them very sturdy and durable, yet still with the ability to move, if required. They are wind resistant up to 120km and then beyond this when secured to your surface. Always keep the roof louvres slightly open during extreme weather conditions to allow the wind to pass through the structure.

Can the Pergola be dismantled & reassembled?

Yes, this is possible.

Does the Pergola Require Maintenance?

These models require very minimal maintenance. The frame can be washed with cleaning materials and also jet washed. The gutters can also be cleared with a jet wash.

What’s the difference between the Rota & Maranza Pergolas?

The functionality is the same on both models. The key difference in models is the height. The Rota is 20cm taller, so it makes a great overhang above bifold doors. In addition, the Rota louvres open slightly different from the Maranza, venting fully vertical and towards the shorter length. With the exception of models with six legs (which have a roof system split in two), the Rota works on one roofing system so all louvres open in one movement, whereas dependent on the frame size of the Maranza, it has multiple roof sections, so one section could be closed and another open. The Maranza louvres open towards the longer length.

What surface can the Pergola be installed on?

Our professional fitters can install and secure onto any flat, solid surface as long as the dimensions of the area are correct.

My surface has a slope, can you install a Pergola on this?

Aluminium louvered roof pergolas work on the natural fall of your existing surface to allow the rain to drain meaning a slight fall is necessary. Please take care to ensure you have measured the area correctly and have a flat surface with a max of 1:80 fall (which, by building regulations your patio should already have). For anything more than this, we would need prior notification, as it means we would need to fit the pergola with packers. Our installers can adjust the legs to sit flat, using spacers up to 50mm; this does not affect your warranty. A 1:80 fall over a distance of 3410mm is 42mm. For best fitting of the deluxe screens a fall of 10mm is best suited to ensure smooth operation, please note that packers or adjustments may be required if the fall is beyond this.

Can the Pergola be connected to our building?

The outside legs of the frame are always required and cannot be removed. However, we can place the footplates flush to the wall and add flashing to close the gap between the building and the top of the roof beam. This would then keep the structure watertight to your building. Please get in touch to enquire about this option.

The Pergola is manufactured from high-quality aluminium which has been powder coated in the eye-catching Matte Royal Grey or Matte White colour which is UV protected, meaning that not only will the colour not fade over time, but it also protects you and your family from harmful UV rays.

There is virtually no maintenance required as the weatherproof aspects and the toughened aluminium ensures durability allowing for many years of outdoor use.

Please note that good housekeeping should be kept by cleaning the blades and guttering of any debris as often as required.

The 3.6m Alvaro pergola is fully extendable in length by units off 3m & 4m.

3.6m x 3m = Base unit (includes 4 legs and louvered roof system)

3.6m x 4m = Base unit  (includes 4 legs and louvered roof systems

3.6m x 6m = 3m Base unit + 3m extension kit (includes 6 legs and louvered roof system)

3.6m x 7m = 3m Base unit + 4m extension kit (includes 6 legs and louvered roof system) – Please note that this model can be installed also with the 4m base unit + 3m extension.

3.6m x 8m = 4m Base unit + 4m extension kit (includes 6 legs and louvered roof system)

3.6m x 9m = 3m Base unit + 3m extension kit + 3m extension kit (includes 10 legs and louvered roof system)

Screen options can be added to all 4 sides of the Alvaro pergola.
