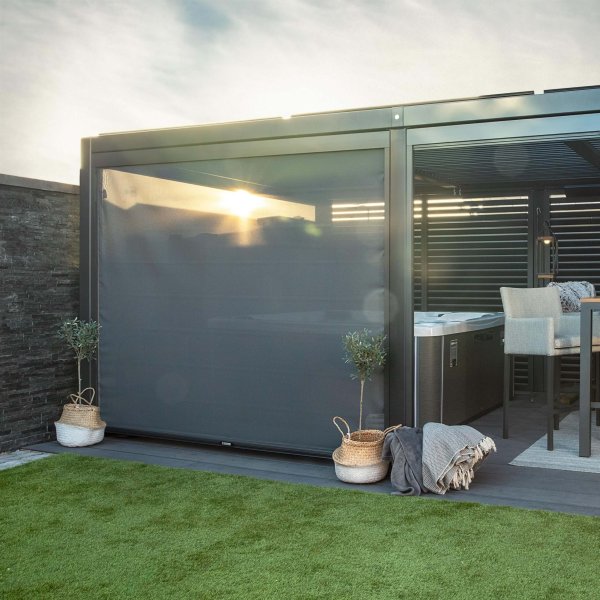

The Deluxe Screen is an upgraded version of the Galaxy Sun Screen and so zips into your Deluxe Maranza Pergolas legs, enabling an element of weatherproofing, allowing you to enjoy your outdoor area with added protection from the sun, wind and rain.

These are the standard option if you choose to add them when purchasing your Maranza Deluxe Pergola.

All of our Pergolas come with full assembly instructions and can be easily self fitted with basic DIY knowledge, as well as ideally two more people to help, plus an array of tools. Please note: DO NOT use dent holes in legs as a guide for fitting screen. Instead fit screen 5mm from the front so that the deluxe screen is as close to from edge as possible.

If you would rather not assemble your Pergola with screens yourself, then please ensure you add the install to your order. Please click here for more information regarding the installation and the pre-installation guide agreement.

A natural fall of ideally 15mm is required to allow the water to drain away as designed and for the screens to be fitted correctly, which by building regulations, your patio likely already has. Our install team can use packers under specific legs to ensure the complete gazebo works correctly should the fall of the patio level be different to the above, and by using our installation service you are agreeing to our team using packers under the footplates in such instances.

You can download the floorplans here:

The 3x3m Deluxe Maranza

The 3×3.6m Deluxe Maranza

The 3.5×3.6m Deluxe Maranza

The 3.5×5.4m Deluxe Maranza

The 3.5×7.2m Deluxe Maranza

Here are also links to the screen instructions for each size screen

330cm Deluxe

277cm Deluxe

278cm Deluxe

250cm Deluxe

335cm Deluxe

340cm Deluxe

The side-screens are made from the highest quality Textilene. Unrivalled for strength and beauty, Textilene is made of PVC coated woven polyester non-stretch yarn which is flame retardant, heat sealable, mildew resistant, and stable under either hot or cold temperatures. Textilene is also a superb contract fabric in terms of durability, specially formulated from yarns developed to withstand wear and tear and has been tested up to wind force 4.

What is the difference between the Maranza Deluxe Screen and Galaxy Sun Screen?

Both options are produced with hardened aluminium, powder coated casing and durable Textilene mesh. The sun screens should be used for shade and privacy only, they can be left down in mild wind and rain but must not be left down in higher winds or overnight.

The deluxe screens are our updated model, they are built into the sidetrack of the pergola frame, which makes them much stronger and will not allow them to flap in the wind. This screen will shelter from moderate winds and protect from rain whilst using the structure.

Can side options be added at a later date?

Yes, all side option configurations can be retro fitted to an existing pergola frame. Please note this will incur an additional installation charge of £200 should you decide to add these at a later date. The charge will not occur if the screens are installed at a later date due to not being in stock at the time of order and our install team will return to fit at no extra cost once back in stock.
